Layer 10 Wind Iris Lidar Molas Nl Laser Remote Sensing

Brand Name : MOVELASER

Model Number : Molas NL

Certification : DNV GL , Intertek , RISO Dtu

Place of Origin : China

MOQ : 1 set

Price : Dollar 5W$+ （Price consultation customer service）

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 200 set ，1 month

Delivery Time : 1-2 months

Packaging Details : Air Box

Measurement Layer : 10

Wind Direction Accuracy : 0.5°

Sampling frequency : 4Hz

Wind speed measurement range : -50 ~50m/s

Wind speed accuracy : 0.1m/s

Communication mode : Profibus DP/Modbus TCP/ Modbus RTU/CANOPEN

Contact Now

Lidar measurement Measurement Layer 10 wind lidar Molas NL

| Product introduction

Molas NL series is a nacelle wind lidar independently developed for the intelligent application scheme of wind power customers. It is a laser remote sensing wind measurement device installed on the top of the wind turbine nacelle. The lidar adopts the coherent detection system, and based on the principle of laser Doppler frequency shift, realizes the accurate measurement of 50m-200m / 400m / 750m vector wind field in front of the fan impeller.
| Application scenarios
For fan testing, such as blade load analysis, power curve testing, wake analysis, etc.

| Product parameters 参数

Performance

Measure the distance

50~200m

Measurement Layer

10

Sampling frequency

4Hz

Wind speed measurement range

-50 ~50m/s

Wind direction measurement range

-180°～180°

Wind speed accuracy

0.1m/s

Accuracy of wind direction

±0.5°

Laser form

pulse wave

| Product Features

True front wind measurement
Real time data transmission and local storage
Accuracy up to 0.1m/s and 0.5°
high sample rate
Multiple distance layers
large range

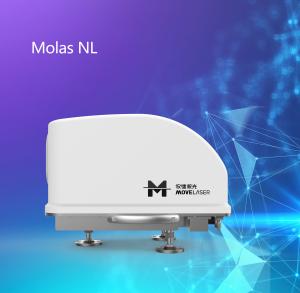

| Product Image

Layer 10 Wind Iris Lidar Molas Nl Laser Remote Sensing
